詳細信息：

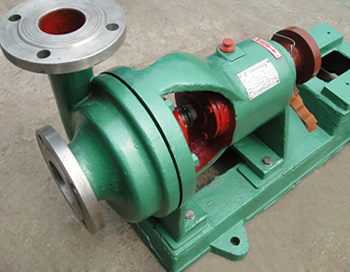

FB型不銹鋼耐腐蝕泵適用于不含有固體顆粒介質,介質溫度為O℃～120℃,進口壓力不大于2kg/cm2。AFB型不銹鋼耐腐蝕離心泵是在F型耐腐蝕泵的基礎上改進設計的,采用新型的付葉輪動力軸封裝置,屬單級單吸懸臂式耐腐蝕離心泵。該泵與輸送介質接觸的過流部份零件,采用1Cr18Ni9Ti材料制造。用于輸送不含固體顆粒,有腐蝕性液體,被輸送介質溫度為-20℃～130℃,泵進口壓力不大于2kg/cm2。
耐腐蝕離心泵主要用途：該泵廣泛應用于化工、石油、冶金、輕工、合成纖維、環保、食品、醫藥等部門。該類產品具有性能穩定可靠、密封性能好,造型美觀,使用檢修方便等優點。為提高產品質量、減少跑、冒、滴、漏,,防止污染,發揮很大的作用。
性能參數表：
|
型 號 |
流量Q |
揚程H |
轉速n |
效率(%) |
軸功率 |
配用功率 (Kw) | |
|
(m 3 /h) |
(L/s) |
(m) |
(r/min) |
(Kw) | |||
|
25FB-16 |
3.6 |
1 |
16 |
2900 |
33 |
0.48 |
1.1 |
|
25FB-16A |
3.27 |
0.91 |
12.5 |
2900 |
34 |
0.34 |
0.75 |
|
25FB-25 |
3.6 |
1 |
25 |
2900 |
30 |
0.82 |
1.5 |
|
25FB-25A |
3.27 |
0.91 |
40 |
2900 |
31 |
0.57 |
1.1 |
|
25FB-40 |
3.6 |
1 |
40 |
2900 |
23 |
1.71 |
3 |
|
25FB-40 |
3.27 |
0.91 |
33.5 |
2900 |
24 |
1.21 |
2.2 |
|
40FB-16 |
7.2 |
2 |
16 |
2900 |
44 |
0.71 |
1.5 |
|
40FB-16A |
6.55 |
1.82 |
12 |
2900 |
46.7 |
0.5 |
1.1 |
|
40FB-20 |
7.2 |
2 |
20 |
2900 |
42 |
0.93 |
1.5 |
|
40FB-25 |
7.2 |
2 |
25 |
2900 |
39 |
1.26 |
2.2 |
|
40FB-25A |
6.55 |
1.82 |
20.5 |
2900 |
40 |
0.94 |
1.5 |
|
40FB-40 |
7.2 |
2 |
40 |
2900 |
32 |
2.45 |
3 |
|
40FB-40A |
6.55 |
1.82 |
32 |
2900 |
33.5 |
1.73 |
2.2 |
|
40FB-63 |
7.2 |
2 |
63 |
2900 |
27 |
5.42 |
7.5 |
|
40FB-63A |
6.72 |
1.87 |
56 |
2900 |
29 |
3.75 |
5.5 |
|
50FB-16 |
14.4 |
4 |
16 |
2900 |
56 |
1.09 |
2.2 |
|
50FB-16A |
13.1 |
3.64 |
12 |
2900 |
57 |
0.81 |
1.5 |
|
50FB-25 |
14.4 |
4 |
25 |
2900 |
52 |
1.83 |
4 |
|
50FB-25A |
13.1 |
3.64 |
20 |
2900 |
51.5 |
1.42 |
3 |
|
50FB-40 |
14.4 |
4 |
40 |
2900 |
46 |
3.32 |
5.5 |
|
50FB-40A |
13.1 |
3.64 |
32.5 |
2900 |
45 |
2.62 |
5.5 |
|
50FB-63 |
14.4 |
4 |
63 |
2900 |
39 |
6.16 |
11 |
|
50FB-63A |
13.1 |
3.64 |
54.5 |
2900 |
38 |
5.24 |
7.5 |
|
65FB-25 |
28.8 |
8 |
25 |
2900 |
62 |
3.16 |
5.5 |
|
65FB-25A |
26.2 |
7.28 |
20 |
2900 |
62 |
2.36 |
4 |
|
65FB-30 |
28.8 |
8 |
30 |
2900 |
60.5 |
3.89 |
7.5 |
|
65FB-30A |
26.2 |
7.28 |
25 |
2900 |
61 |
2.79 |
5.5 |
|
65FB-40 |
28.8 |
8 |
40 |
2900 |
57.5 |
5.46 |
11.5 |
|
65FB-40A |
26.2 |
7.28 |
32 |
2900 |
58 |
4 |
7.5 |
|
65FB-64 |
28.8 |
8 |
64 |
2900 |
52.5 |
9.57 |
15 |
|
65FB-64A |
26.2 |
7.28 |
55 |
2900 |
51.5 |
7.82 |
7.5 |
|
80FB-15 |
54.4 |
15 |
15 |
2900 |
69 |
3.2 |
5.5 |
|
80FB-15A |
49.1 |
13.65 |
11.5 |
2900 |
69 |
2.62 |
4 |
|
80FB-24 |
54.4 |
15 |
24 |
2900 |
68 |
5.19 |
7.5 |
|
80FB-24A |
49.1 |
13.65 |
19 |
2900 |
68 |
3.94 |
7.5 |
|
80FB-38 |
54.4 |
15 |
38 |
2900 |
66.5 |
8.41 |
15 |
|
80FB-38A |
49.1 |
13.65 |
30.5 |
2900 |
66.5 |
6.34 |
11 |
|
80FB-60 |
54.4 |
15 |
60 |
2900 |
62.8 |
14.06 |
22 |
|
80FB-60A |
49.1 |
13.65 |
52 |
2900 |
62.5 |
11.56 |
18.5 |
|
100FB-23 |
100.8 |
28 |
23 |
2900 |
73 |
8.65 |
15 |
|
100FB-23A |
91.8 |
25.5 |
17.5 |
2900 |
73 |
6.51 |
11 |
|
100FB-37 |
100.8 |
28 |
37 |
2900 |
73 |
13.9 |
22 |
|
100FB-37A |
91.8 |
25.5 |
29 |
2900 |
70.5 |
11 |
18.5 |
|
100FB-57 |
100.8 |
28 |
57 |
2900 |
70.5 |
22.2 |
37 |
|
100FB-57A |
91.8 |
25.5 |
52 |
2900 |
70.5 |
18.77 |
37 |
|
150FB-22 |
190.8 |
53 |
22 |
2900 |
77 |
14.86 |
22 |
|
150FB-22A |
173.5 |
48.2 |
17.5 |
2900 |
78 |
10.6 |
18.5 |
|
150FB-35 |
190.8 |
53 |
35 |
2900 |
76 |
13.94 |
37 |
|
150FB-35A |
173.5 |
48.2 |
28 |
2900 |
76 |
17.42 |
30 |
|
150FB-56 |
190.8 |
53 |
56 |
2900 |
76 |
38.3 |
55 |
|
150FB-56A |
173.5 |
48.2 |
50 |
2900 |
76 |
32.1 |
37 |
